MC-HW48RC81 - กล้องอนาล็อก & กล้อง IP
| รูปทรง: | กระบอก |
|---|
2.0 Megapixel CMOS Full HD Water-proof IR Network Camera
คลิ๊กที่ภาพ เพื่อชมภาพตัวอย่างวีดีโอย้อนหลังเหตุการณ์จริง โดยไม่มีการตกแต่ง ณ งานแสดงสินค้าบ้านและสวนแฟร์ 2012
Features:
Camera & Video:
- 1/3” 2.0 Mp SONY progressive scan Exmor CMOS image sensor
- High-performance TI DaVinci series DSP
- H.264 video compression and JPEG image capture
- 25/30fps @1080P resolution
- Dual encoding streams supported
- Support ICR true Day/Night
- Built-in 3.3~12mm/F1.6 CS Auto Iris lens
- Max. IR distance: 20m
- Support Alarm I/O, RS485 interface
- Support max 32GB Mircro SD card for local storage
- IP66 Water-proof protection
- Built-in Web server, NVR, CMS(PSS/DSS) & DMSS
- DC12V(AC24V optional), PoE
Specifications:
|
Model
|
MC-HW48RC81
|
|
General
|
|
|
processor
|
TI DaVinci Series DSP
|
|
Operating System
|
Embedded LINUX
|
|
Resource
|
Simultaneous remote monitoring, local recording and remote control
|
|
User Interface
|
WEB, CMS(DSS/ PSS), DMSS, NVR
|
|
Camera
|
|
|
Image Sensor
|
1/3” 2.0 Megapixel SONY progressive scan Exmor CMOS
|
|
Effective Pixels
|
1920(H)×1080(V)
|
|
Electronic Shutter
|
Auto/Manual,1/3(1/4)-1/10000s
|
|
Mini. Illumination
|
0.1LUX/F1.6(Color);0.01LUX/F1.6(B/W); 0LUX(IR ON)
|
|
Signal Noise Ratio
|
>50dB
|
|
Gain Control
|
Auto/Manual
|
|
White Balance
|
Auto/Manual
|
|
Day/Night
|
ICR
|
|
Lens
|
CS mount,Auto,Iris,3.3～12mm/F1.6
|
|
IR distance
|
20m
|
|
Video
|
|
|
Video Compression
|
H.264/JPEG
|
|
Image Resolution
|
PAL:1080P(1920×1080)/SXGA (1280×1024)/ 1.3M(1280×960)/720P(1280×720) / D1(704×576) / CIF(352×288)
NTSC: 1080P(1920×1080)/SXGA (1280×1024)/ 1.3M(1280×960)/720P(1280×720) / D1(704×480) / CIF(352×240)
|
|
Encoding Speed
|
Main Stream: 2.0M(1~25fps)
|
|
Extra Stream: D1:(1~25fps/30fps)
|
|
|
Bit Rate
|
56Kbps~8192kbps
|
|
Snapshot
|
Fastest 1fps JPEG capture
|
|
Video Format
|
PAL/NTSC
|
|
Analogue Video Output
|
1 channel BNC (1.0Vp-p, 75?)
|
|
Audio
|
|
|
Audio Compression
|
G.711a / G.711u / PCM
|
|
Bit Rate
|
128kbps/64kbps/10.2kbps
|
|
Input
|
1 channel 3.5mm JACK LINE IN
|
|
Output
|
1 channel 3.5mm JACK SPEAK OUT
|
|
Network
|
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Network Functions
|
HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, , Alarm Server
|
|
Remote Operation
|
Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade
|
|
Auxiliary Interface
|
|
|
SD Card
|
Max 32GB, local storage
|
|
RS232
|
PC communication
|
|
RS485
|
PTZ control
|
|
Alarm
|
2 Input /1 Output
|
|
Environmental
|
|
|
Power Supply
|
DC12V(AC24V optional)POE
|
|
Power Consumption
|
﹤10W
|
|
Ingress Protection
|
IP66
|
|
Operating Environment
|
-10℃～+60℃,10％～90％
|
|

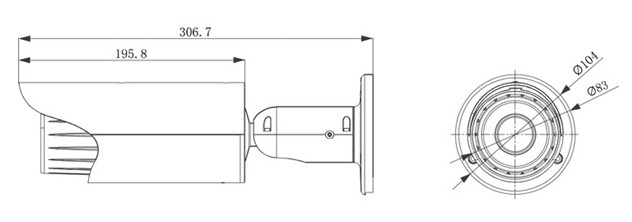

Dimension
|
Φ104mm×306.7mm
|
|
Weight
|
1.25Kg
|
