MC-HP98AC21-81 - กล้องอนาล็อก & กล้อง IP
1.jpg){kind=tracking}
| รูปทรง: | PTZ (หมุนซ้าย/ขวา/ซูม) |
|---|
2.0 Megapixel Full HD Network IR PTZ Dome Camera
คลิ๊กที่ภาพ เพื่อชมภาพตัวอย่างวีดีโอย้อนหลังเหตุการณ์จริง โดยไม่มีการตกแต่ง ณ งานแสดงสินค้าบ้านและสวนแฟร์ 2012
Features:
Camera & Video:
- 1/3” 2Megapixel progressive scan Exmor CMOS
- Powerful 20x optical zoom and 16x digital zoom
- H.264 & Dual-stream video encoding and JPEG image capture
- Max 25/30fps @1080P resolution
- Day/Night (ICR), Auto iris, Auto focus, AWB, BLC
- Up to 24 privacy masking areas
- Built-in Web server, NVR, CMS(PSS/DSS) & DMSS
Dome Drive:Specifications:
- Max 240 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
- Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
- Auto recognition of general protocols such as Pelco-P/D, and etc
- Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
- Auto restore to previous PTZ and lens status after power failure
- Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
- Idle Motion: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
- OSD and operation prompts of various languages
- Build-in 7/2 channel alarm input/output
- Intelligent 3D positioning function
- IP66 all-environments protection and built-in auto constant temperature control device
- 4000V thunder, surge and wave-proof protection
- Easy installation and 100% waterproof with quick-installation port adopted
IR LED
- The longest distance of the build-in IR LED is over 100m
Specifications:
|
Model
|
MC-HP98AC21-81
|
|
|
Camera
|
||
|
Image Sensor
|
1/3” progressive scan Exmor CMOS
|
|
|
Effective Pixels
|
Approx. 2 Megapixels
|
|
|
Lens
|
20x optical zoom
|
|
|
f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5
|
||
|
Digital Zoom
|
16x
|
|
|
Horizontal Viewing Angle
|
55.4°(wide) ~ 2.90°(Tele)
|
|
|
Min. Object Distance
|
10mm~1000mm (wide~tele)
|
|
|
Min. Illumination
|
1.8Lux/F1.6(color); 0.02Lux/F1.6(B/W)
|
|
|
Electronic Shutter
|
1/1 to 1/30,000 s
|
|
|
White Balance
|
AWB(3200to7500K);ATB(2000to10000K);Indoor(3200K); Outdoor(5800K);Manual
|
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
|
S/N Ratio
|
More than 50 dB
|
|
|
Privacy Masking
|
ON/OFF (up to 24 privacy masking areas)
|
|
|
Analog Video Output
|
BNC(1.0Vp-p / 75Ω), PAL / NTSC
|
|
|
Video & Audio
|
||
|
Video Compression
|
H.264 / MPEG4
|
|
|
Image Resolution
|
1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480)
|
|
|
Encoding Speed
|
Main Stream
|
PAL: 1080P/720P(1~25fps)
|
|
NTSC: 1080P/720P(1~30fps)
|
||
|
Extra Stream
|
PAL: D1(1~25fps)
|
|
|
NTSC: D1(1~30fps)
|
||
|
Bit Rate
|
32K~8Mbps
|
|
|
Audio Compression
|
G.711a(32Kbps) / AMR(10.2Kbps)
|
|
|
Audio Mode
|
Off/Audio input/Audio output
|
|
|
Dome Drive
|
||
|
Pan/Tilt Range
|
Horizontal: 0°~360° endless, Vertical: -2°~90° auto flip 180° to continue monitor
|
|
|
Manual Control Speed
|
Horizontal: 0.1° ~160° /s, Vertical: 0.1° ~120° /s
|
|
|
Preset Speed
|
Horizontal: 240° /s, Vertical: 200° /s
|
|
|
Preset
|
255
|
|
|
PTZ Mode
|
5 Auto Pattern, 8 Auto Tour, 5 auto scan
|
|
|
3D Positioning
|
Yes
|
|
|
Speed Setup
|
Human-oriented focal Length/ speed adaptation
|
|
|
Info Display
|
Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
|
|
|
Power up Action
|
Auto restore to previous PTZ and lens status after power failure
|
|
|
Idle Motion
|
Activate preset/scan/tour/ patter if there is no command in the specified period.
|
|
|
Time Task
|
Auto activation of Preset/Scan/Tour/ Pattern by preset-time
|
|
|
Alarm
|
7/2 alarm input/output, Triggering Preset/Tour/Pattern/Scan/Alarm output
|
|
|
Protocol
|
Pelco-P/D, Auto recognition of general protocols
|
|
|
IR LED
|
Auto / Near light / Far light / OFF, 6 Near light + 8 Far light, up to 100m
|
|
|
Network
|
||
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
|
Network Functions
|
HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server
|
|
|
Max Remote Users
|
20 Users simultaneously
|
|
|
Processor
|
TI DaVinci Series DSP
|
|
|
Operating System
|
Embedded LINUX
|
|
|
Resource
|
Simultaneous remote monitoring, remote operation & local recording
|
|
|
Remote Operation
|
Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade
|
|
|
Local Recording
|
SD/SDHC, Max 32GB
|
|
|
User Interface
|
WEB, CMS(DSS/ PSS), DMSS, NVR
|
|
|
General
|
||
|
Power Supply
|
AC 24V/3A (±10%)
|
|
|
Power Consumption
|
12W/30W(IR LED ON)
|
|
|
Working Temperature
|
-30ºC ~ 60ºC
|
|
|
Working Humidity
|
<90%
|
|
|
Protection Level
|
IP66, 4000V thunder, surge and wave-proof protection
|
|
|

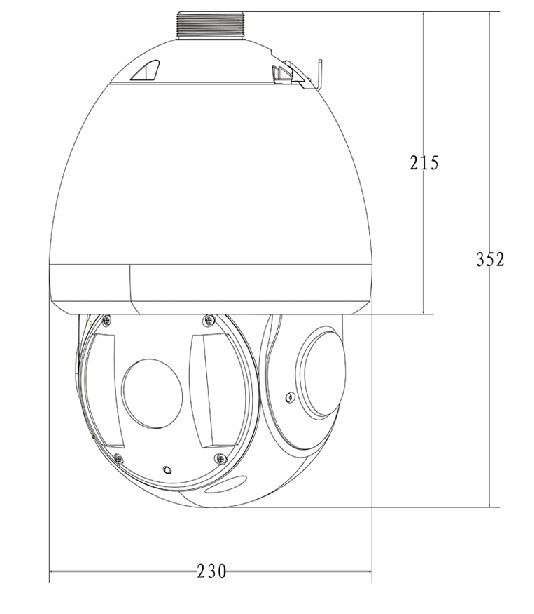

Dimension
|
Φ229.6 (mm) x 381 (mm)
|
|
|
Weight
|
7.0kg
|
|
